WSC-1250

0.00

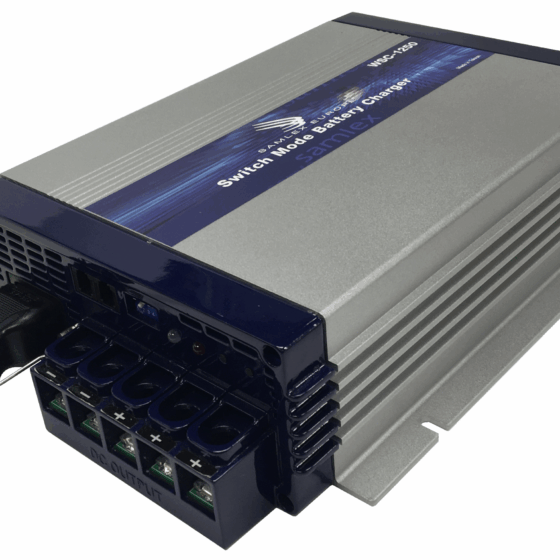

This advanced fully automatic 4-stage 50 Amp battery charger is ideal for charging all types of 12 Volt lead-acid batteries ( Flooded / Absorbed Glass Mat (AGM) / Gel Cell), LI-Ion from a 115/230 V, 50/60 Hz AC source. A DIP switch setting can be used to convert to a two stage algorithm, in order to charge batteries connected to a DC load (DC UPS). The unit can also be used as a DC Power Supply. Features include overload and short circuit protection. The unit allows charging of up to 2 separate battery banks.

Out of stock

Description

Input Voltage 100-240 VAC
Output Voltage 14,8-13,5 VDC
Dimensions 292 x 210 x 75 mm
Output 50 Amps
Fuse Rating n/a
Weight 2,5 Kgs

Product benefits

  • Wide input range 100-240Vac / 50/60Hz
  • Charger/ Power supply function
  • Power factor correction 0.97
  • Half power mode function
  • Fan speed controlled
  • Slim line design
  • Light Weight
  • High Efficiency >90%
  • 2 year warranty

Product documentation

LanguageFileType
n.a.WSC-1250Image
WSC-1250_slicksheetSpecifications
Bedienungsanleitung WSC-1250_2425Manual
Gebruiksaanwijzing WSC-1250_2425Manual
Manual del Propietario WSC-1250_2425Manual
Manual WSC-1250_2425Manual
Mode D’Emploi WSC-1250_2425Manual
